SA-4100i

IOS Test And Measurement Microphone

The SA-4100i is a calibrated, full range, omni-directional test and measurement microphone for direct connection to iOS devices running iOS 5.0 or later. With SA-4100i and the AudioControl Mobile Tools app, you will be able to analyze the acoustics of any environment with high resolution and precision, using the processing power of your iPhone®, iPod® touch or iPad®. SA-4100i makes set up of any sound processor a breeze, too, letting you see the acoustical spectrum and take action! SA-4100i includes a microphone clip and windscreen.

Compatibility

• iPhone 5, iPhone 5C, iPhone 5S
• iPhone 6, iPhone 6 Plus
• iPod Touch 5th generation
• iPad mini, iPad mini 2, iPad mini 3
• iPad Air, iPad Air 2
• iPad 4th generation

Mobile Tools App

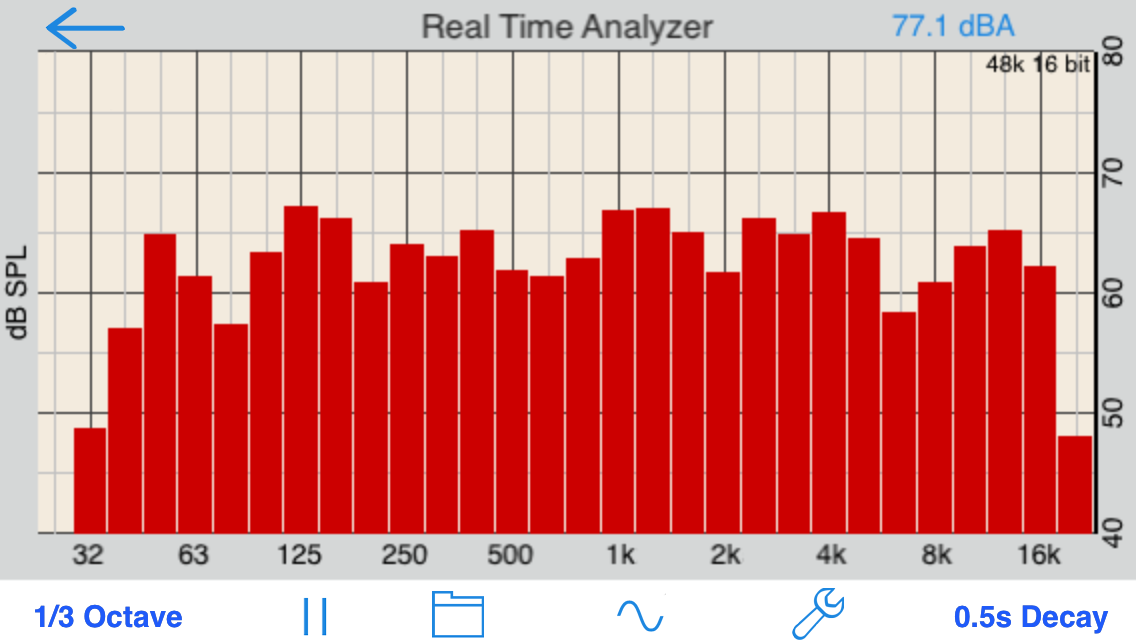

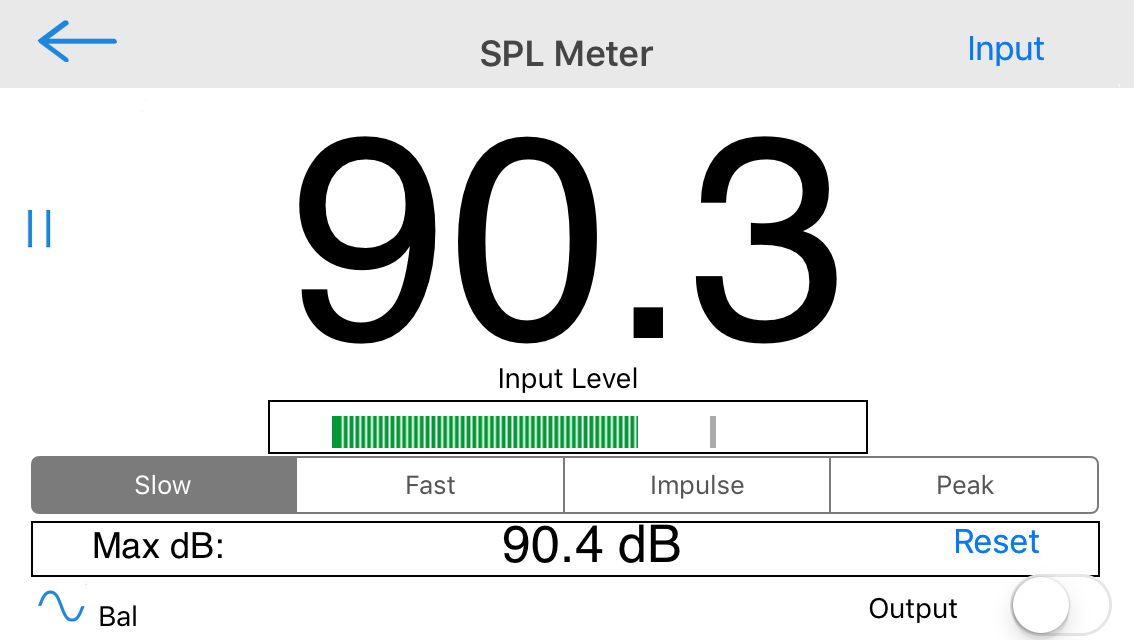

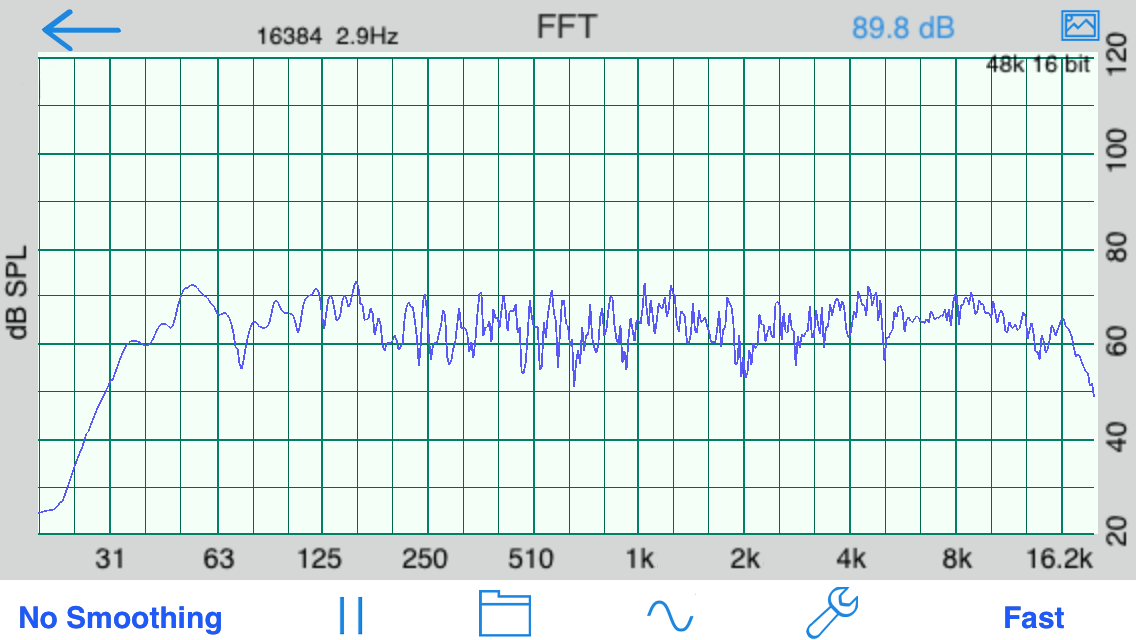

The included Mobile Tools app supports the full capabilities of the SA-4100i microphone with five powerful modules, including RTA, FFT, SPL, Polarity and the proprietary DQ-61 Delay module. Mobile Tools is available as a free download on the App store.

Specifications

Performance

• Frequency Response: 20Hz – 20kHz ±3dB
• Gain Ranges: 27dBA – 105dBA; 48dBA – 120dBA
• Polar Pattern: Ominidirectional
• Power Consumption: <50mA
• Connector: Lightning

Weights & Dimensions

• Tip Diameter: 13 mm (.5 inches)
• Length: 145 mm ( 5.7 inches)

In the box: SA-4100i, Clip, Wind Screen, Manual
