EQX

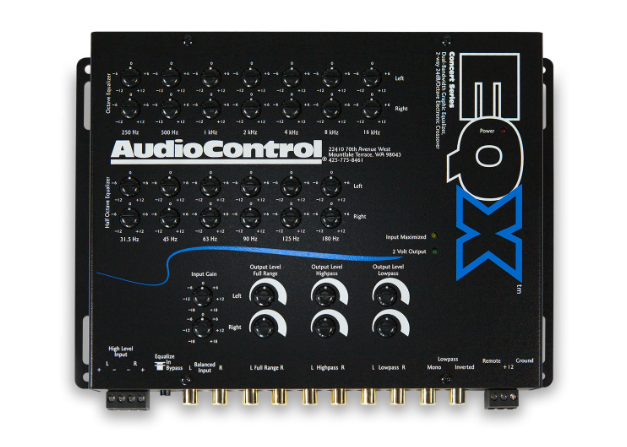

2 Channel Trunk-Mount Equalizer With Crossover
An impressive update of the first serious car equalizer/crossover. Thirteen-band dual bandwidth equalization plus Programmable Frequency Match (PFM) filter. Steep 24 dB/octave slope 2-way Linkwitz-Riley electronic crossover easily lets you control a subwoofer for high-impact bass. Accepts speaker level inputs for easy OEM integration.
Features
- Stereo Equalization with Crossover
- 6 Band, 1/2 Octave Bass EQ
- 7 Band, Octave Equalizer
- Two-way 24 dB/Octave Linkwitz-Riley Crossover
- Programmable Frequency Match (PFM) Subsonic Filter
- Line and Speaker Level Inputs
- Balanced Inputs
- Input and Output Level Matching Controls
Specifications
Inputs
- Preamp Inputs: 1 (2 channels)
- Input Gain: ±18dB
- Speaker Level Inputs: 1 (2 channels)
Outputs
- Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 7.5Vrms
Performance
- Total Harmonic Distortion: 0.005%
- Frequency Response: 10Hz-20kHz ±1 dB
- Signal to Noise: 110dB at full output
- Crossover Type: 24dB/octave Linkwitz-Riley
Control
- Remote In
General
- Power Supply: Variable Isolation Transformer Switching Supply
- Recommended Fuse Rating: 2A
Weights & Dimensions
- Dimensions: 8.9″W x 6.9″D x 1.25″H
- Weight: 2.7lbs (1.2kg)
in the box: EQX, Power and Speaker Connector, Manual, Warranty
Downloads
Full Line Catalog
Pink Noise
User Manual
FAQ
We always reccomend a big 3 kit for every vehicle, regardless of the system. However, if you plan on running more than 1,500 watts we reccomend a good AGM battery underhood, and then from there more power will need more electrical upgrades depending on power.
