EQL
local_offer

EQL

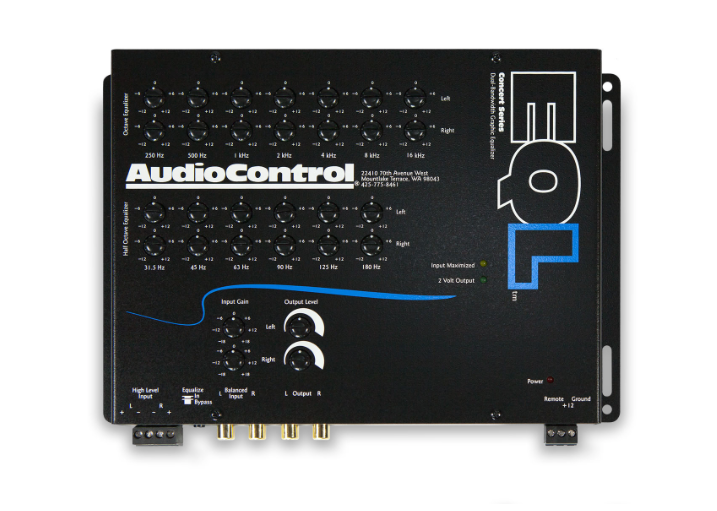

2 Channel Trunk-Mount Equalizer



The EQL works wonders with any 2 channel audio system: From existing factory installed setups to custom audiophile-grade systems. Level-matching circuitry allows connection to either preamp-level or speaker-level inputs. The EQL also features thirteen-band, dual-bandwidth equalization and a Programmable Frequency Match (PFM) filter for precise bass control.

Features

  • Stereo Equalization
  • 6 Band 1/2 Octave Bass EQ
  • 7 Band 1 Octave Equalizer
  • Input and Output Level Matching Controls
  • Programmable Frequency Match (PFM) Subsonic Filter
  • Preamp and Speaker Level Inputs
  • Balanced Inputs

Specifications

Inputs

  • Preamp Inputs: 1 (2 channels)
  • Input Gain: ±18dB
  • Speaker Level Inputs: 1 (2 channels)

Outputs

  • Preamp Outputs: 1 (2 channels)
  • Maximum Output Level: 7.5Vrms

Performance

  • Total Harmonic Distortion: 0.003%
  • Frequency Response: 10Hz-100kHz
  • Signal to Noise: 110dB

Control

  • Remote In

General

  • Power Supply: Variable isolation transformer switching supply
  • Recommended Fuse Rating: 2A

Weights & Dimensions

  • Dimensions: 8.9″W x 6.9″D x 1.25″H
  • Weight: 2.7lbs (1.2kg)

In the box: EQL, Power and Speaker Connector, Manual, Warranty

Downloads



Full Line Catalog

Pink Noise

User Manual
