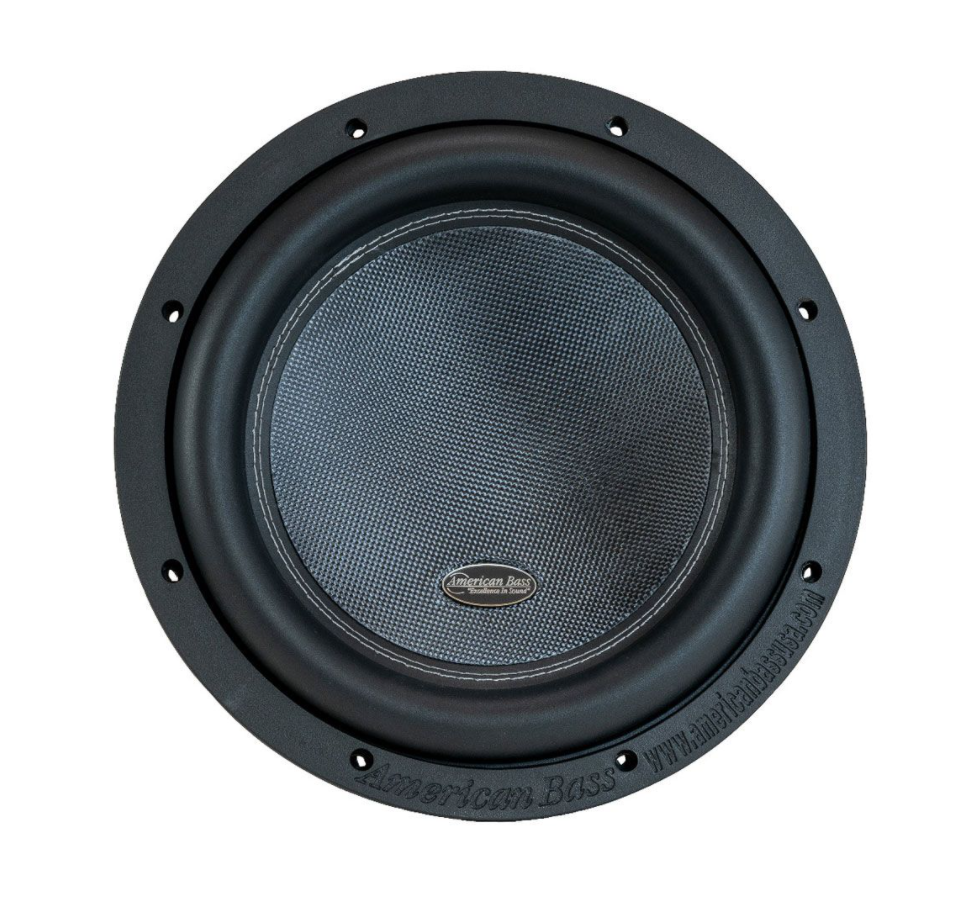

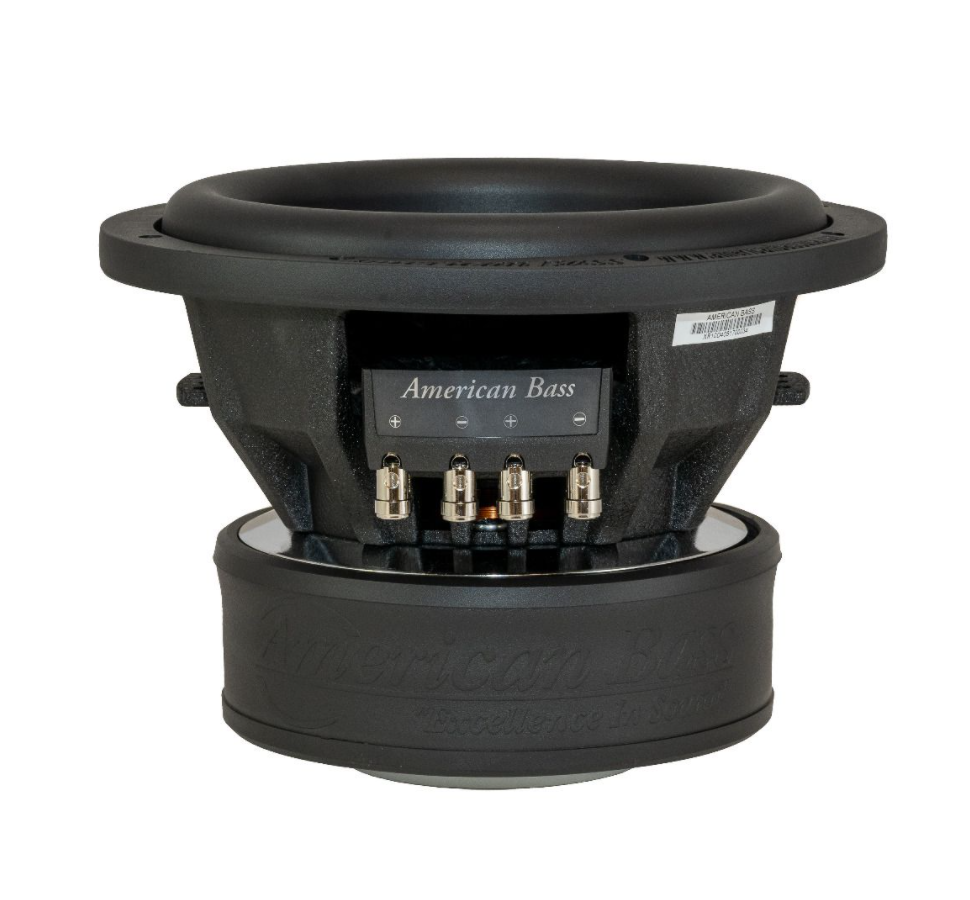

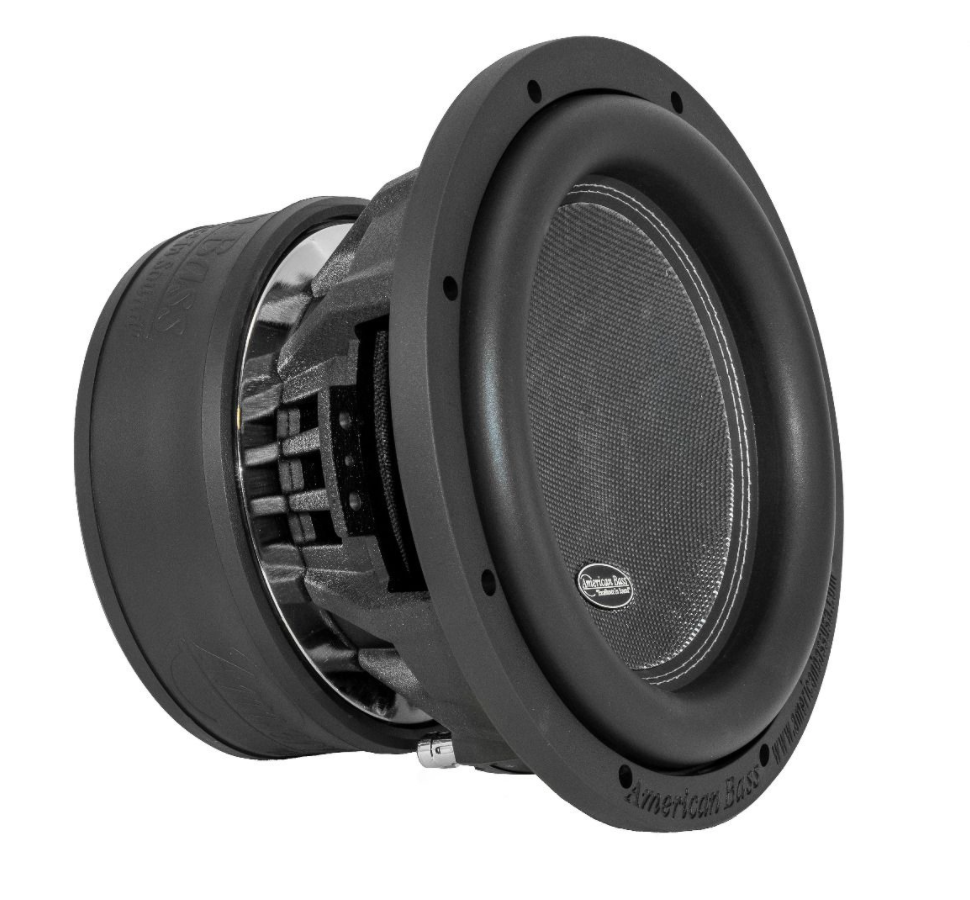

AMERICAN BASS HAS DESIGNED THE XR SERIES SUBWOOFER FOR THE ULTIMATE LOW BASS ENTHUSIAST. The XR series will deliver crisp bass surpassing the competition. Newly re-designed, the wire terminals are all repositioned to one side of the speaker for easy installation. Consisting of a fiberglass reinforced cone, cast frame and stitched rubber surround.
| RMS POWER | 1000W |
|---|---|
| MAX POWER | 2000W |
| IMPEDENCE (OHMS) | D2 |
| SENSITIVITY DB | 88 |
| MOUNTING DEPTH (IN) | 7.08" |
| CUTOUT SIZE (IN) | 9.2" |
| PORTED BOX (FT3) | 1.25 - 1.5 |
| MAGNET SIZE (OZ) | 200 |
| VOICE COIL SIZE | 3" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL COMP 2K |
| DOWNLOAD SPECS |  Download Specs |
FAQ
We always reccomend a big 3 kit for every vehicle, regardless of the system. However, if you plan on running more than 1,500 watts we reccomend a good AGM battery underhood, and then from there more power will need more electrical upgrades depending on power.
